More Specification
Model No Dia Width Plate Bolt Hole Hole Total Dynamic Static Wheel Size Spacing Size Height (KG) (KG) Bearing SS304M/50X25/PT/PU 50 25 75X50 60X30 6 80 30 45 Single SS304M/65X25/PT/PU 65 25 75X65 54X43 8 90 45 60 Single SS304M/75X25/PT/PU 75 25 75X65 54X43 8 105 50 65 Single SS304M/75X32/PT/PU 75 32 75X75 55X55 9 105 80 115 Single SS304M/75X38/PT/PU 75 38 100X80 80X60 10 105 90 120 Double SS304M/100X32/PT/PU 100 32 75X75 55X55 9 135 85 125 Single SS304M/100X38/PT/PU 100 38 100X80 80X60 10 135 105 150 Single SS304M/100X50/PT/PU 100 50 100X100 75X75 10 135 125 180 Double SS304M/125X32/PT/PU 125 32 100X80 80X60 10 155 110 155 Single SS304M/125X38/PT/PU 125 38 100X80 80X60 10 155 130 160 Single SS304M/125X50/PT/PU 125 50 125X100 100X75 12 155 160 225 Double SS304M/150X50/PT/PU 150 50 125X100 100X75 12 185 200 260 Double SS304M/200X50/PT/PU 200 50 125X125 100X100 12 245 225 300 Double
- Unit No. 55, Phase II,
- Parmar Techno Center, Vasai Phata,
Vasai (East)-401208
- Send your mail at
- kingcraftindustries@gmail.com
- Contact Number
- +91 8007162569
- +91 9920915359
Medium Duty

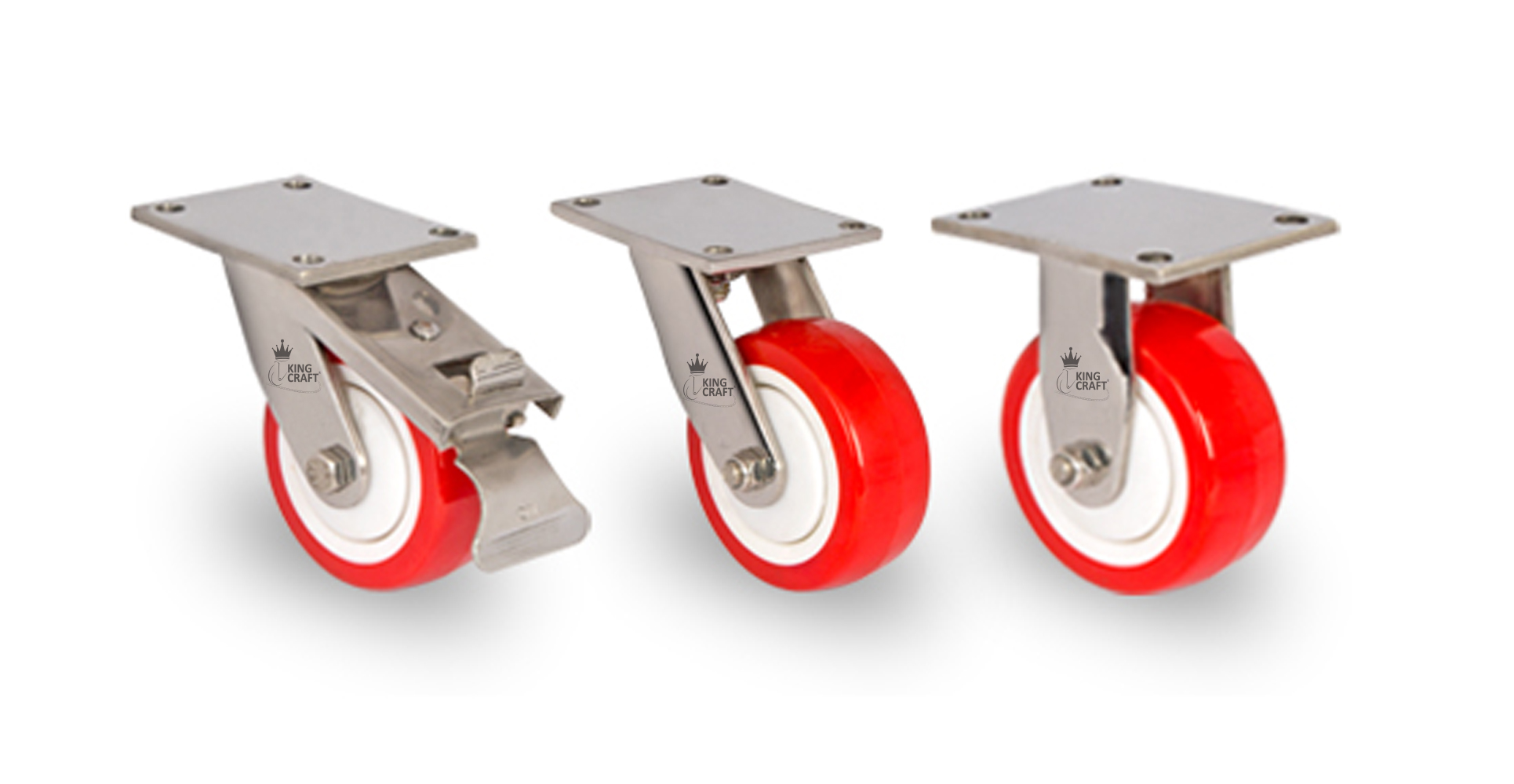

Medium Duty - Plate Type
BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.

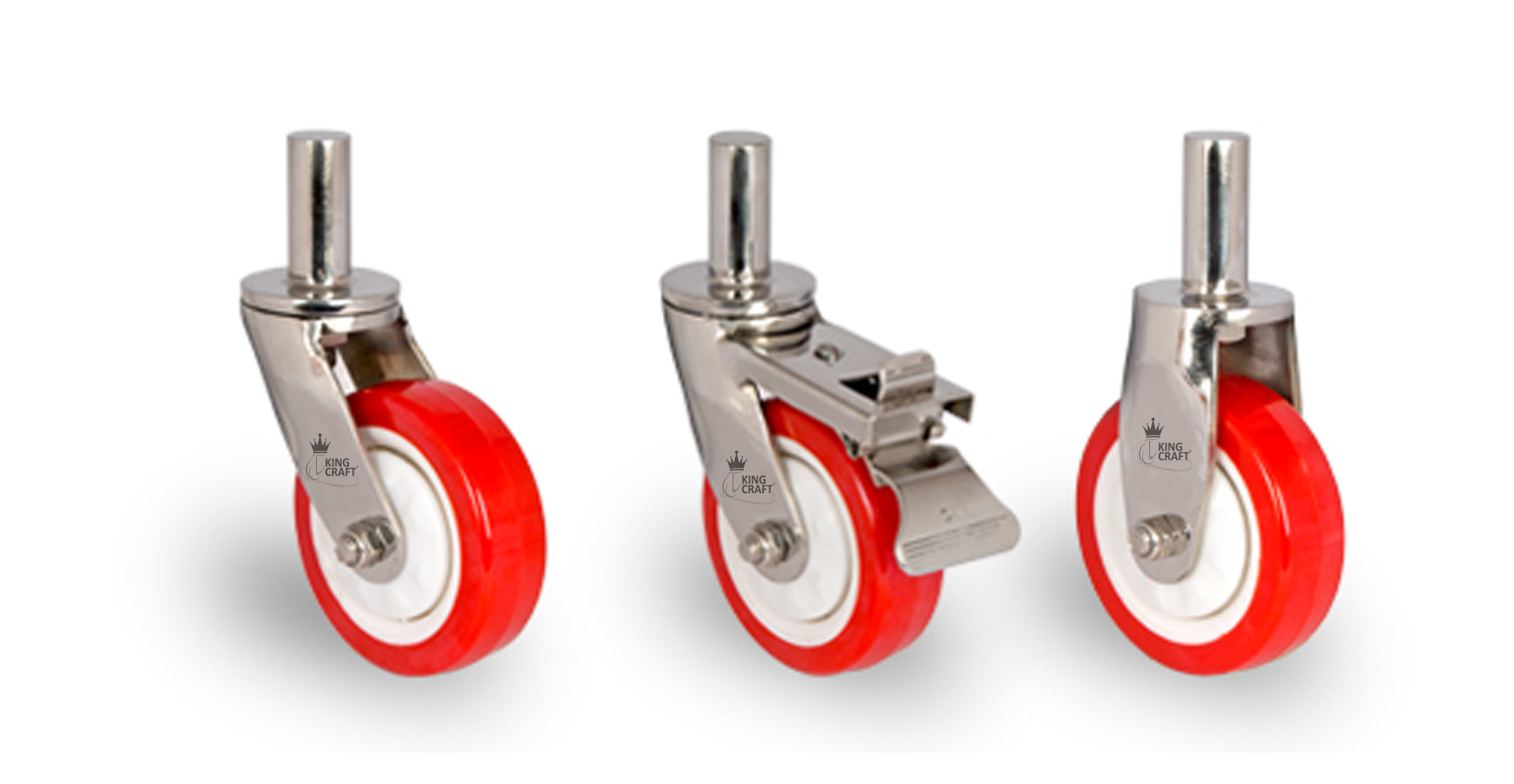

Medium Duty - Pin Type
BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.
-
More Specification
Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel Size Height Height (KG) (KG) Bearing SS304M/50X25/PI22/PU 50 25 22 50 80 30 45 Single SS304M/65X25/PI22/PU 65 25 22 50 90 45 60 Single SS304M/75X25/PI22/PU 75 25 22 50 105 50 65 Single SS304M/75X32/PI22/PU 75 32 22 50 105 80 115 Single SS304M/75X38/PI22/PU 75 38 22 50 105 90 120 Double SS304M/100X32/PI22/PU 100 32 22 50 135 85 125 Single SS304M/100X38/PI22/PU 100 38 22 50 135 105 150 Single SS304M/100X50/PI22/PU 100 50 22 50 135 125 180 Double SS304M/125X32/PI22/PU 125 32 22 50 155 110 155 Single SS304M/125X38/PI22/PU 125 38 22 50 155 130 160 Single SS304M/125X50/PI22/PU 125 50 22 50 155 160 225 Double SS304M/150X50/PI22/PU 150 50 22 50 185 200 260 Double SS304M/200X50/PI32/PU 200 50 32 50 245 225 300 Double

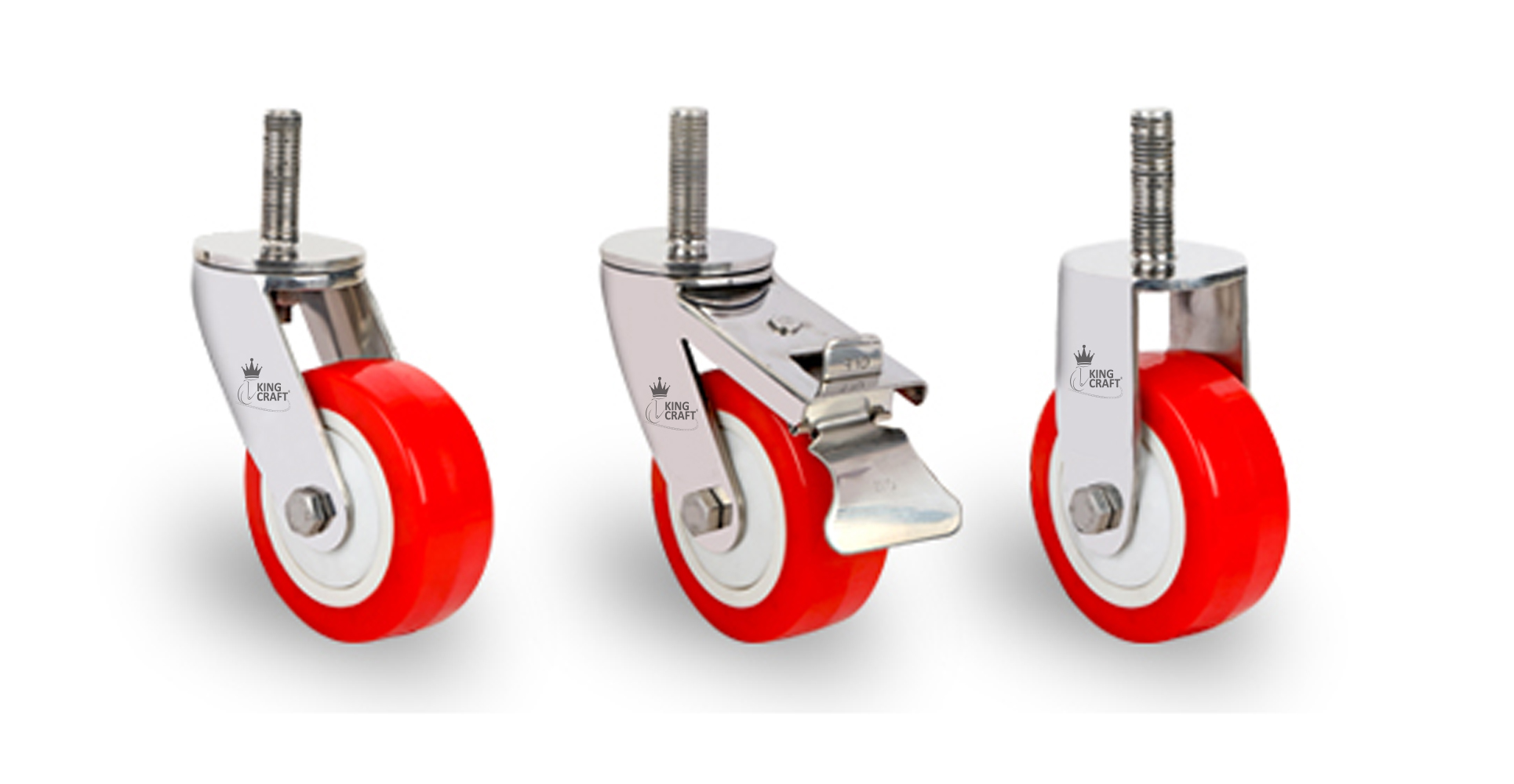

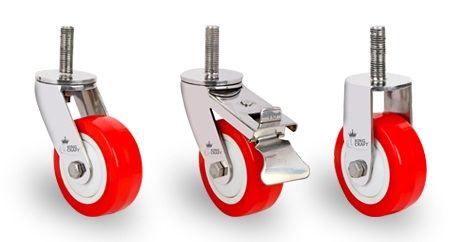

Medium Duty - Stud Type
BRACKET:- Stainless Steel (AISI304) Medium Duty particularly robust welded construction, Swivel bracket with ball bearing in the swivel head, bolted and secured central king pin extremely strong, bolted wheel axle with self locking nut, cotter pin and slotted nut arrangement allow adjustment of swivel head play during usage.
PU WHEELS:- High Quality Polyurethane Wheels Hardness 90 Shore A & 95 Shore A, Low Rolling resistance, Non-marking, Non-staining and Strongly inseparable connection with the Wheel centre.
-
More Specification
Model No Dia Width Stud Dia Stud Total Dynamic Static Wheel Size Height Height (KG) (KG) Bearing SS304M/50X25/M12/PU 50 25 M12 50 80 30 45 Single SS304M/65X25/M12/PU 65 25 M12 50 90 45 60 Single SS304M/75X25/M12/PU 75 25 M12 50 105 50 65 Single SS304M/75X32/M12/PU 75 32 M12 50 105 75 110 Single SS304M/75X38/M12/PU 75 38 M12 50 105 80 120 Double SS304M/100X32/M12/PU 100 32 M12 50 135 85 125 Single SS304M/100X38/M12/PU 100 38 M12 50 135 105 150 Single SS304M/100X50/M16/PU 100 50 M16 50 135 125 180 Double SS304M/125X32/M16/PU 125 32 M16 50 155 110 155 Single SS304M/125X38/M16/PU 125 38 M16 50 155 130 160 Single SS304M/125X50/M16/PU 125 50 M16 50 155 160 225 Double SS304M/150X50/M16/PU 150 50 M16 50 185 200 260 Double SS304M/200X50/M24/PU 200 50 M24 50 245 225 300 Double
