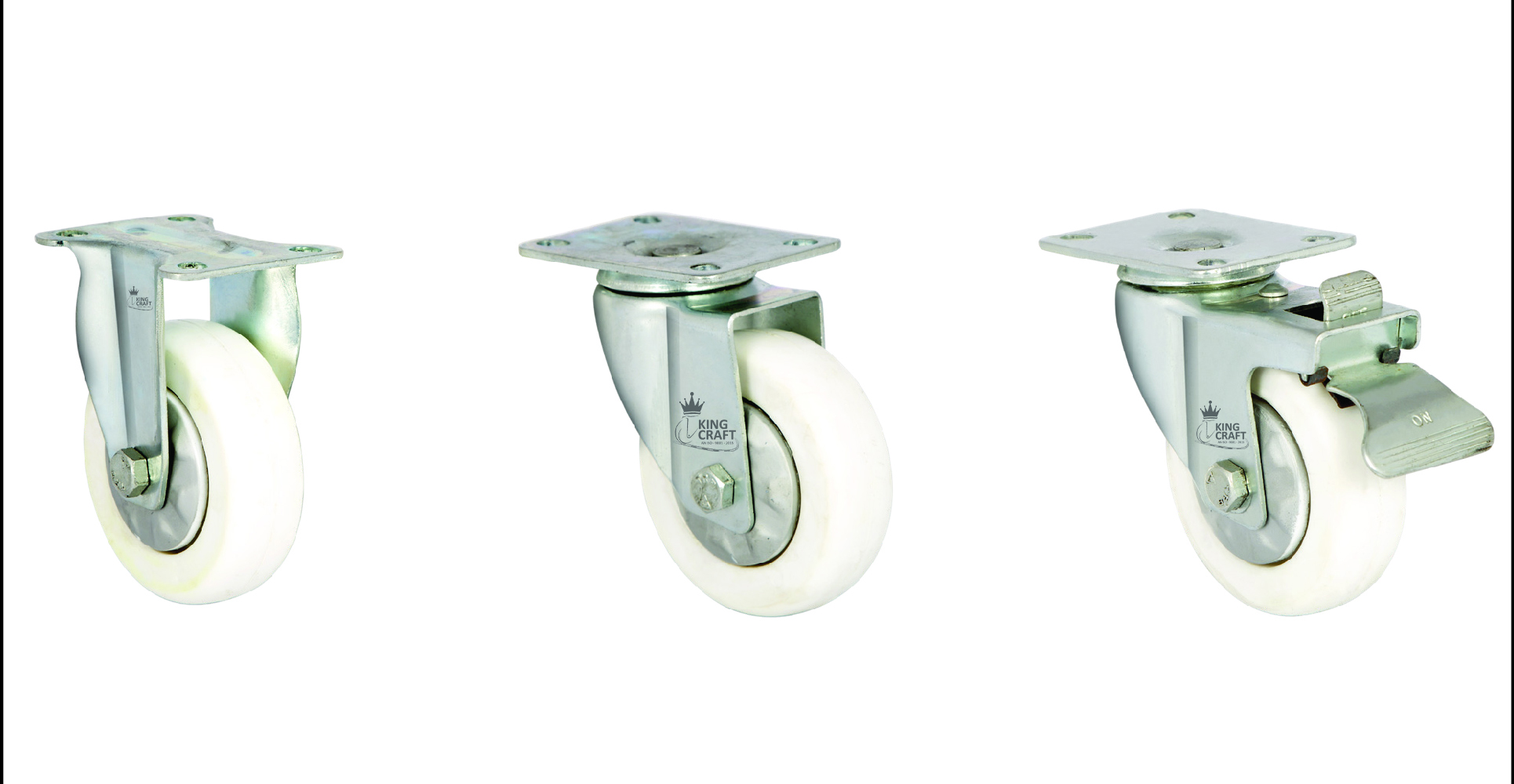

Zinc Plated Die Pressed Caster On White Polyproplene
Plate Type
BRACKET :- Zinc Platteed Die Pressed models in Swivel,Swivel with Lock & Fix Bracket. Swivel type model contain double ball bearing type with Dual Lock Mechanism i.e Total Lock and the Body Structure is Constructed by Die pressed with Center body revit
PP WHEELS:-
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolt Hole | Hole | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Size | Height | (KG) | (KG) | Bearing | |||
| ZPD/50x25/PT/PP | 50 | 25 | 51 x 70 | 35 x 52 | 8 | 70 | 30 | 40 | Single |
| ZPD/75x32/PT/PP | 75 | 32 | 70 x 95 | 46 x 74 | 9 | 105 | 40 | 60 | Single |
| ZPD/100x32/PT/PP | 100 | 32 | 70 x 95 | 46 x 74 | 9 | 125 | 70 | 90 | Single |
| ZPD/125x32/PT/PP | 125 | 32 | 70 x 95 | 46 x 74 | 9 | 155 | 100 | 130 | Single |
